Tail Shaft Assembly

This assembly actuates the feed auger, providing torque to turn the auger, and when the arm travel is reversed, pushes the auger is without turning it.

Item Number

Quantity

Vendor

Part Number

Part Name

Comment

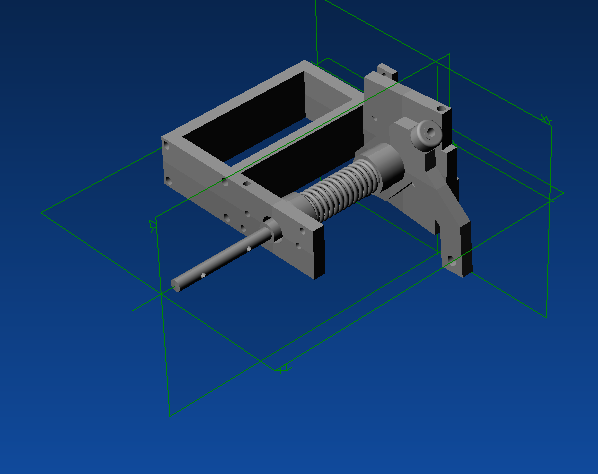

This is the TailShaft Assembly

This assembly turns the feed auger, and also provides reciprocating axial motion for feeding



1

McMaster-Carr

9657K22

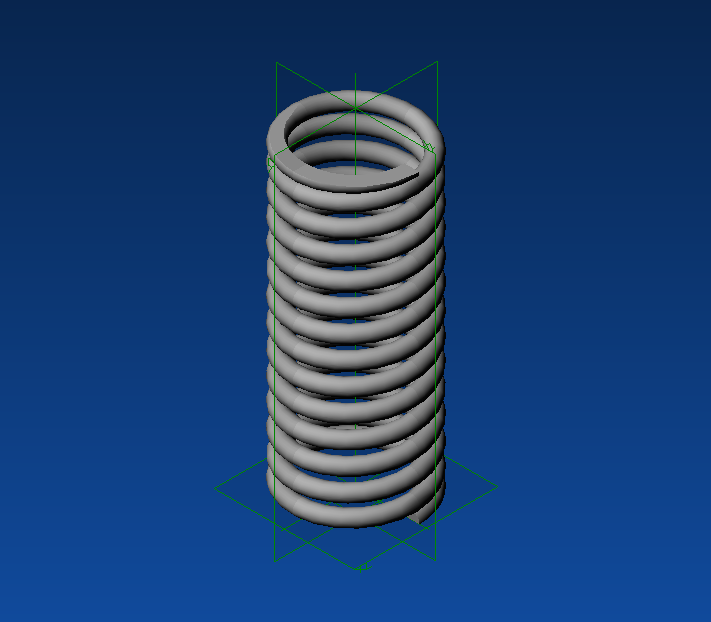

AugerReturnSpring

Brings the tailshaft back after being driven forward by the torque arm



1

McMaster-Carr

2489K13

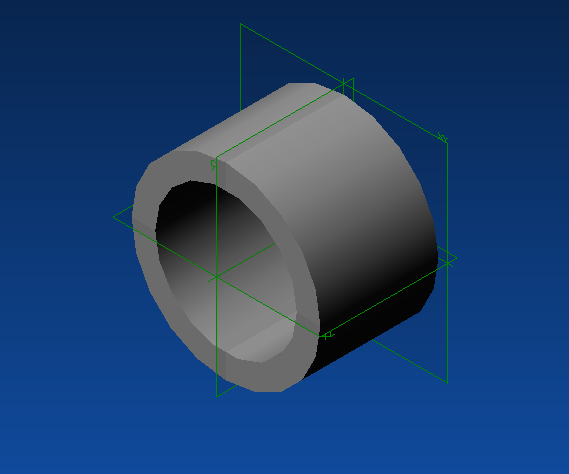

OneWayClutch

This allows the torque arm to turn the auger one direction only.



2



PushTab

Tab for setting the amount the torque arm moves axially each stroke



2

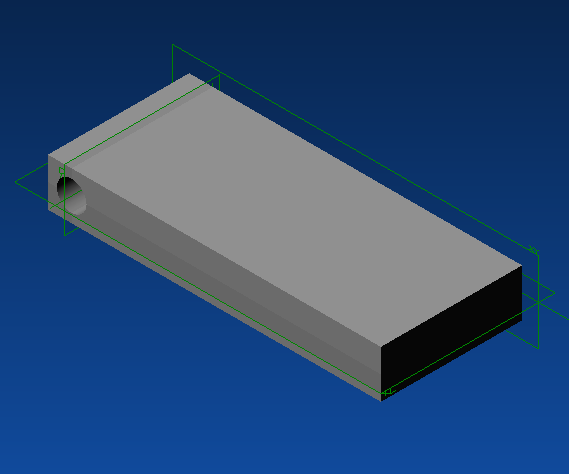

AugerPushBar

This is what the PushTab sets for the torque stroke



1

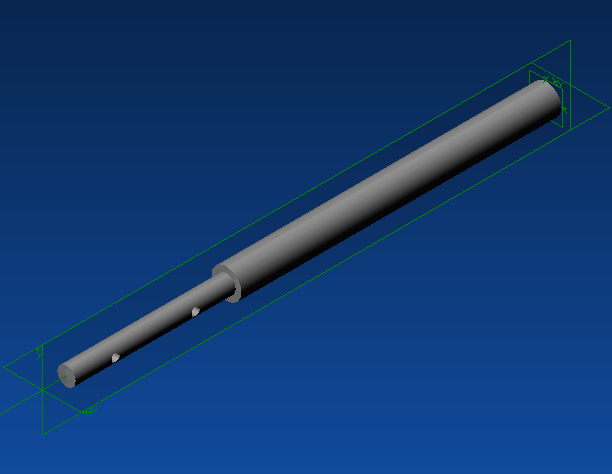

TailShaft




1

McMaster-Carr

60715K13

ThrustBearing




2

McMaster-Carr

5912K46

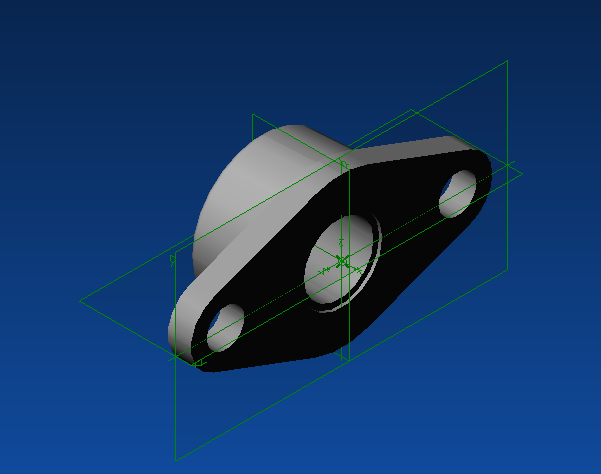

AugerFlangeBearing




1

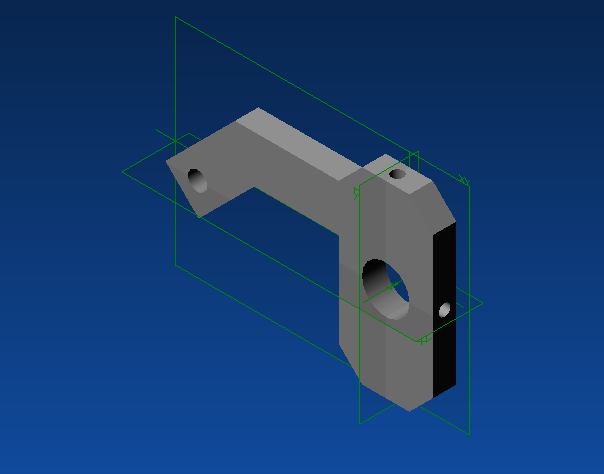

AugerTorqueArm




2

McMaster-Carr

6831K43

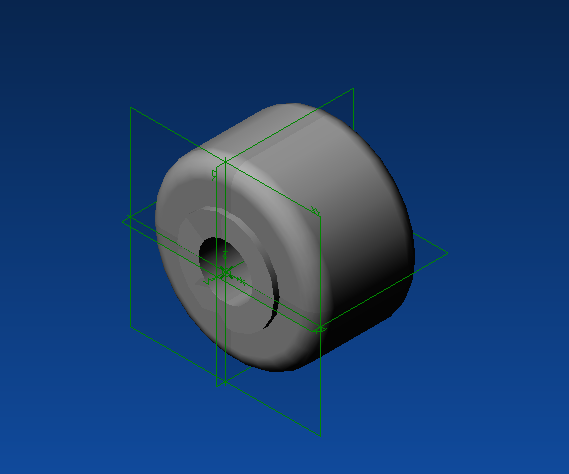

TrackRoller




1

McMaster-Carr

6436K16

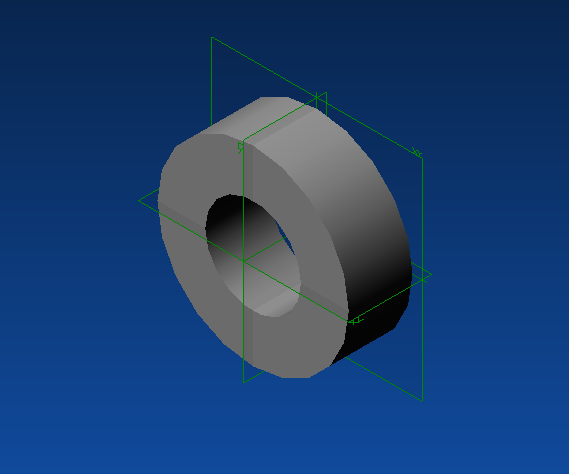

AugerShaftCollar




2

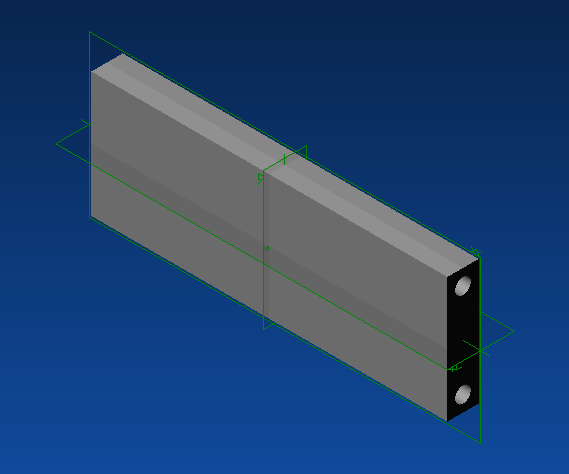

TieBar




2

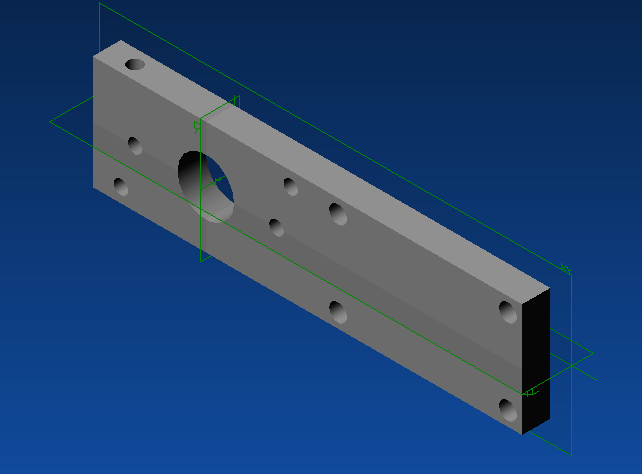

AugerPushPlate
